In the realm of manufacturing, injection molding machines are the workhorses that transform raw plastic materials into a myriad of useful products. However, the efficiency and quality of the injection molding process heavily depend on the performance of the molds. As an experienced Injection Molding Machine supplier, I understand the frustrations that come with mold - related problems. In this blog, I'll share some effective troubleshooting strategies to help you keep your injection molding operations running smoothly.
Understanding the Common Mold Problems
Before we delve into troubleshooting, it's essential to identify the most common issues that can occur with molds for injection molding machines.
1. Flash
Flash is one of the most prevalent problems in injection molding. It refers to the thin, unwanted plastic material that seeps out of the mold cavity and forms a thin layer around the edges of the molded part. Flash can be caused by several factors, such as improper clamping force, worn - out mold components, or excessive injection pressure.
2. Short Shots
A short shot occurs when the plastic material fails to fill the entire mold cavity, resulting in an incomplete part. This problem can be attributed to insufficient injection volume, low injection pressure, or a blocked gate in the mold.
3. Sink Marks
Sink marks are depressions or indentations on the surface of the molded part. They typically occur in thick - walled sections of the part and are caused by uneven cooling and shrinkage of the plastic material.
4. Warping
Warping is the distortion of the molded part from its intended shape. It can be due to uneven cooling, improper ejection, or residual stresses in the part.
Troubleshooting Strategies
1. Flash Troubleshooting
- Check Clamping Force: Ensure that the clamping force of the injection molding machine is sufficient to keep the mold closed during the injection process. If the clamping force is too low, the mold may not close properly, allowing plastic to escape. You can refer to the machine's manual to adjust the clamping force to the appropriate level.
- Inspect Mold Components: Examine the mold for any signs of wear or damage, especially around the parting line. Worn - out components can create gaps through which plastic can leak. Replace any damaged parts as soon as possible.
- Adjust Injection Pressure: High injection pressure can also cause flash. Try reducing the injection pressure gradually and observe if the flash problem improves. However, be careful not to reduce the pressure too much, as it may lead to other issues such as short shots.
2. Short Shot Troubleshooting
- Increase Injection Volume: Check the injection volume setting on the machine. If it is set too low, the mold cavity may not be filled completely. Increase the injection volume in small increments until the part is fully formed.
- Boost Injection Pressure: Insufficient injection pressure can prevent the plastic from flowing into all areas of the mold. Increase the injection pressure to ensure that the plastic can reach every corner of the cavity.
- Clear Blocked Gates: A blocked gate can restrict the flow of plastic into the mold. Use appropriate tools to clean the gate and remove any debris or solidified plastic. You can also check the gate size and shape to ensure they are suitable for the material and part design.
3. Sink Mark Troubleshooting
- Optimize Cooling System: Sink marks are often related to uneven cooling. Review the cooling system of the mold to ensure that it is functioning properly. Adjust the coolant flow rate and temperature to promote more uniform cooling of the part. For example, you can increase the coolant flow in areas where sink marks are more likely to occur.
- Modify Part Design: If possible, modify the part design to reduce thick - walled sections. Thicker sections tend to cool and shrink more slowly, leading to sink marks. You can add ribs or bosses to reinforce the part instead of relying on thick walls.
- Adjust Holding Pressure and Time: Proper holding pressure and time can help compensate for the shrinkage of the plastic. Increase the holding pressure and extend the holding time to ensure that more plastic is packed into the part during the cooling process.
4. Warping Troubleshooting
- Improve Cooling Uniformity: Similar to sink marks, warping can be caused by uneven cooling. Make sure that the cooling channels in the mold are evenly distributed and that the coolant flow is consistent. You can also use cooling inserts or baffles to direct the coolant flow more effectively.
- Check Ejection System: Improper ejection can cause warping. Ensure that the ejection pins are properly positioned and that they apply an even force on the part. If necessary, adjust the ejection system to prevent the part from being deformed during ejection.
- Anneal the Part: Annealing is a heat - treatment process that can help relieve residual stresses in the part. After molding, heat the part to a specific temperature and hold it for a certain period of time, then cool it slowly. This can reduce the warping caused by internal stresses.
Importance of Regular Maintenance
Regular maintenance of the molds is crucial for preventing problems. Here are some maintenance tips:
- Clean the Mold Regularly: Remove any plastic residue, debris, or contaminants from the mold after each production run. Use appropriate cleaning agents and tools to avoid damaging the mold surface.
- Lubricate Moving Parts: Apply lubricant to the moving parts of the mold, such as slides, lifters, and ejection pins. This can reduce friction and wear, ensuring smooth operation.
- Inspect the Mold Periodically: Conduct a thorough inspection of the mold at regular intervals. Check for signs of wear, damage, or corrosion, and address any issues promptly.

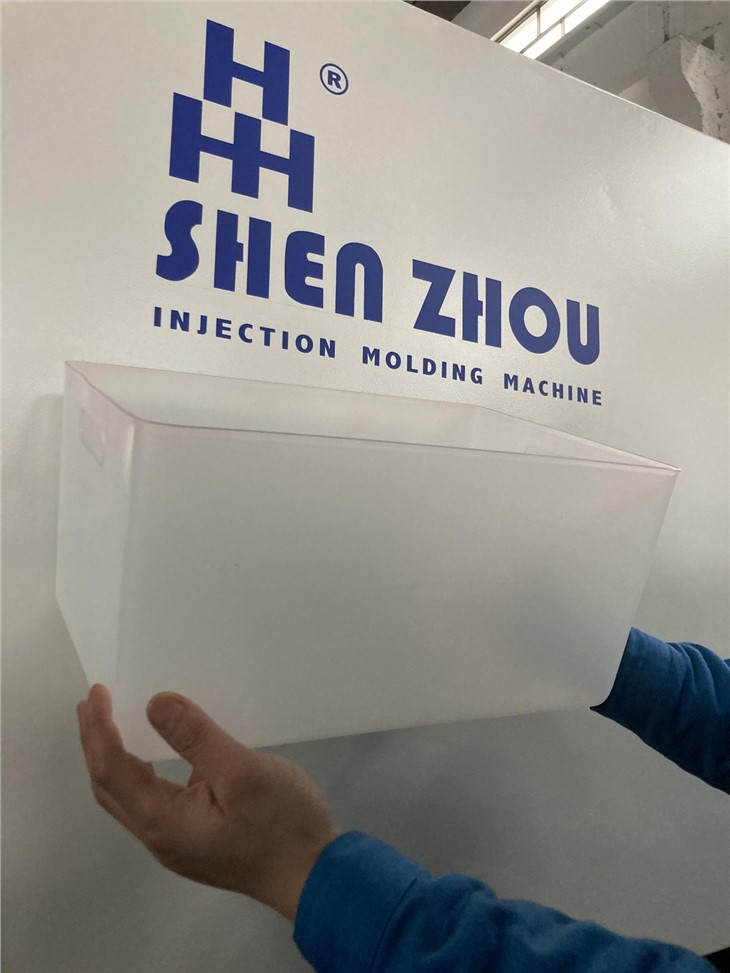

As an Injection Molding Machine supplier, we offer a wide range of high - quality molds and machines to meet your manufacturing needs. If you are interested in our products, such as Plastic Waste Bin Injection Moldign, Plastic Box Storage For Clothes Injection Making Molding Machine, or Plastic Perform Water Bottle Caps Mold Injection Making Moulding Machine, feel free to contact us for more information. We are always ready to assist you in finding the best solutions for your injection molding projects.
Conclusion
Troubleshooting problems with molds for injection molding machines requires a systematic approach. By understanding the common problems, implementing effective troubleshooting strategies, and maintaining the molds regularly, you can minimize downtime and improve the quality of your molded parts. If you encounter any difficulties or need further assistance, don't hesitate to reach out to us. We are committed to helping you achieve optimal performance in your injection molding operations.
