| Product description |
The Flip Top Cap Injection Molding Machine is a specialized plastic molding solution designed for the high-speed and high-precision production of flip top caps. By utilizing the thermoplasticity of plastic, the machine heats and melts the material, then injects it into the mold cavity under high pressure. After cooling and shaping, durable and uniform caps are produced efficiently and consistently.
Compared with conventional molding equipment, our machine offers faster cycle times, stable operation, and greater energy efficiency. Each action is precisely controlled based on real-time flow rate and pressure requirements, ensuring consistent performance while reducing electricity consumption.
The system also features a soft-start mechanism to prevent current surges, improve power factor, and minimize reactive power loss. This reduces mechanical stress on critical components such as motor bearings and oil pump vanes, effectively prolonging service life and lowering maintenance costs.
Key Advantages
- High Productivity – Capable of mass-producing flip top caps with short cycle times.
- Energy Saving – Optimized power control reduces electricity consumption and reactive power loss.
- Durable Performance – Soft-start and intelligent control extend the service life of core components.
- Precision Control – Accurate regulation of flow rate and pressure ensures product consistency.
- Reliable Structure – Robust design with reduced wear on key parts, ensuring long-term stability.
| Main Parameters |
| Screw diameter | mm | 35 | 40 | 45 |
| Screw L/D ratio | L/D | 24.5 | 21 | 18.7 |
| Shot weight | gram | 158 | 206 | 260 |
| Injection capacity | cm3 | 173 | 226 | 286 |
| Injection pressure | Mpa | 235 | 180 | 142 |
| Theoretical injection rate | g/s | 110 | 143 | 181 |
| Plastic capacity | g/s | 13.8 | 19.7 | 27.1 |
| Injection stoke | mm | 180 | ||
| Screw torque | N.m | 740 | ||
| Max screw rotate speed | r/min | 250 | ||
| Clamping force | Ton | 130 | ||
| Opening stroke | mm | 400 | ||
| Space between tie bars | mm | 420x420 | ||
| Mould height | mm | 160~440 | ||
| Max daylight | mm | 840 | ||
| Ejector force | ton | 3.14 | ||
| Ejector stroke | mm | 100 | ||
| Ejector quantity | 5 | |||
| Oil pump motor | kw | 15 | ||
| Pump pressure | Mpa | 10 | ||
| Heating power | kw | 9.2 | ||
| Machine size | M | 4.7*125*1.85 | ||
| Machine weight | ton | 4.3 | ||
| Oil tank capacity | L | 360 | ||
| International designation | 1300-410 | |||
| Detail image |

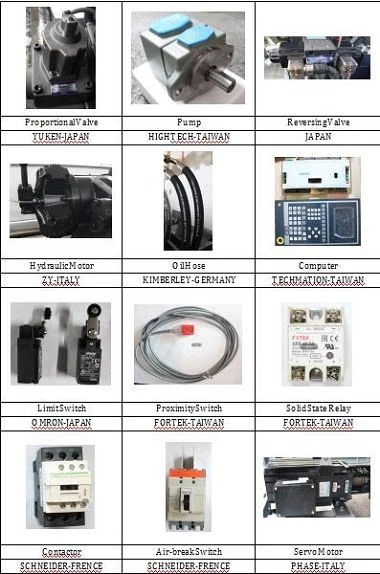

| The main parts |
| Company information |
| Our services & after-sale guarantee |
- One-Year Warranty – Free replacement and repair of core components within 12 months.
- Lifetime Maintenance – Continuous technical support and spare parts supply at factory cost.
- Fast Delivery – Short lead times with global shipping support.
- Free Accessories – Multiple spare parts provided with each machine to reduce downtime.
- Direct Factory Pricing – Competitive cost without middlemen.
- One-Stop Service – From consultation to after-sales support, ensuring smooth project execution.
| Certification |
| Customer Support |
When you encounter any issues with the injection molding machine, our engineers provide professional consultation and timely solutions. We believe that good communication is the foundation of long-term cooperation, and we welcome your inquiries at any time.
